| echochange
|
| |
|
| |
Advantages:
More and more Ethernet is being used in industry. Several
protocols based on Ethernet are available: ISO (H1), ISO
on TCP (RFC1006), Modbus on TCP, EtherNet/IP or AB Ethernet.
Although these protocols are similar, communication between
the corresponding networks is not that simple: Echochange
provides the solution: This produces "relationships"
between plants that were previously imcompatible.
|
| |
| Domain: |
· Connects different
controller worlds:
Siemens (S7,S5)
Rockwell Automation (Allen-Bradley
ControlLogix, CompactLogix, PLC-5, SLC 500)
· Connects PCs with standard
TCP/IP to Industrial Ethernet
· Remote maintenance of ISO (H1)
stations
· Gateway between separated networks
(protocols run on separated media)
· Conversion of application protocols
Raw Data <=> EtherNet/IP; AB Ethernet
· Converter in a heterogeneous
network (protocols run on the same media)
Application examples

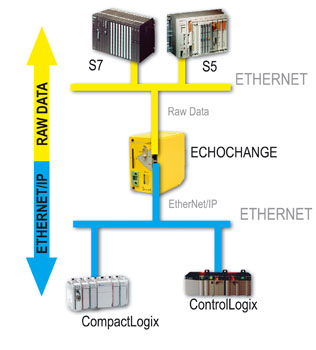

1. Conversion of application protocols: 2 separated networks
Raw <-> EtherNet/IP

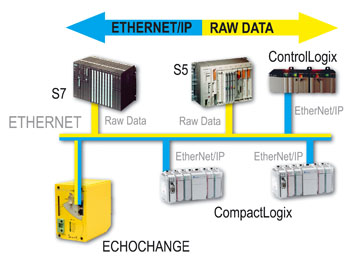

2. Conversion of application
protocols: 1 heterogeneous network
Raw <-> EtherNet/IP

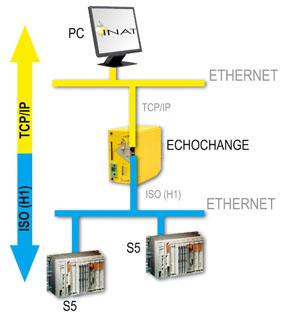

3. Conversion of the
transport protocols: 2 separated networks
TCP/IP <-> ISO (H1)
4. Conversion of the
transport protocols: 1 heterogeneous network
TCP/IP <-> ISO (H1)
Technical Details:
· Including top hat rail adapter
· Note: A connector power pack
is not included in the delivery.
If necessary order it separately
|
| Order data |
| |
Ethernet Interfaces: |
2 x RJ45, 10 / 100 Mbps |
| |
Transport Protocols: |
TCP/IP,
ISO on TCP (RFC1006),
TCP/IP with PLC Header,
ISO (H1) |
| |
Application Protocols: |
Modbus on TCP,
Send / Receive (rawdata)
optional:
EtherNet/IP (CLX),
AB Ethernet (SLC 500, PLC-5) |
| |
Serial Interface: |
1 x RS232, for serial configuration |
| |
Active Connections: |
10 (may be expanded to 30) |
| |
Power Supply: |
24 V DC, ca. 0,8 A |
| |
Dimension[in mm]: |
L = 76, D = 120, H = 120 |
| |
|
Order Numbers: |
| echochange |
echochange, 10 connections |
200-6000-01 |
| echochange, 30 connections |
200-6000-30 |
EtherNet/IP and AB
Ethernet
for Allen-Bradley PLCs
|
200-6000-01 |
| EtherNet/IP Protocol for Allen-Bradley
PLCs |
200-6100-01 |
| Connector power pack
24 V DC |
Version EURO |
700-5596-01 |
| Version UK |
700-5596-02 |
| Version USA |
700-5596-03 |
|
| |
|
|
|
